How To Operate The Food Metal Detector Correctly?
2023-02-20
Customization & Wholesale Metal Detector Machine Manufacturer Since 2010
Please let us know if you need,so that we can check if […]
Please let us know if you need,so that we can check if this model is suitable for your case.Welcome to consult.

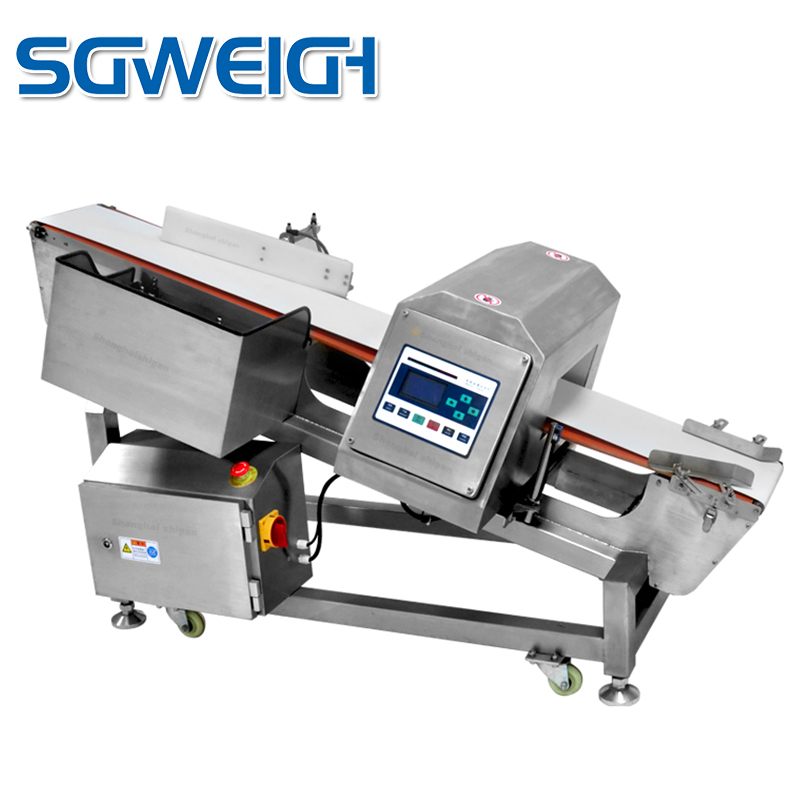

Customizable Ramp Type Conveyor Belt Metal Detector is a precision detection equipment used to detect and eliminate metal foreign matter in products. It is widely used in food, pharmaceutical, chemical and other industries to ensure the quality and safety of products. Metal detectors usually consist of main components such as detection heads, control panels, transmission systems, and automatic rejection systems. Its working principle is based on electromagnetic induction, and it detects and removes metal by detecting the interaction between the magnetic field generated by the coil and metal foreign matter.
Parameter
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
Please let us know the follow details when you need,so that we can check if this model is suitable for your case.Thanks for the consultation！
●What product?
●Product weight?
●Product size?
●Speed requirement?
●Accuracy requirement?
