Product Details
Product Summarize

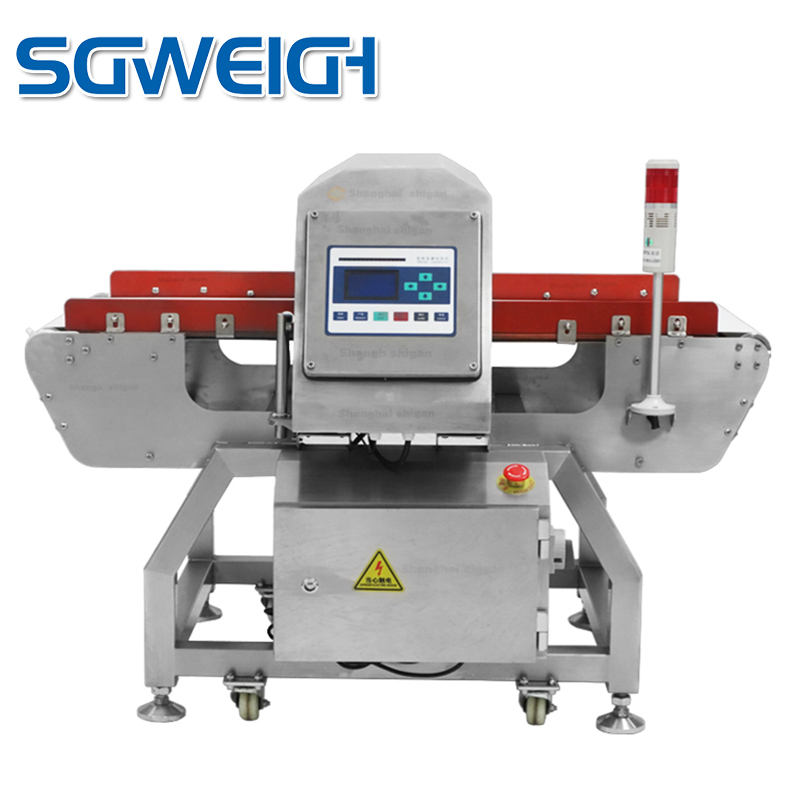

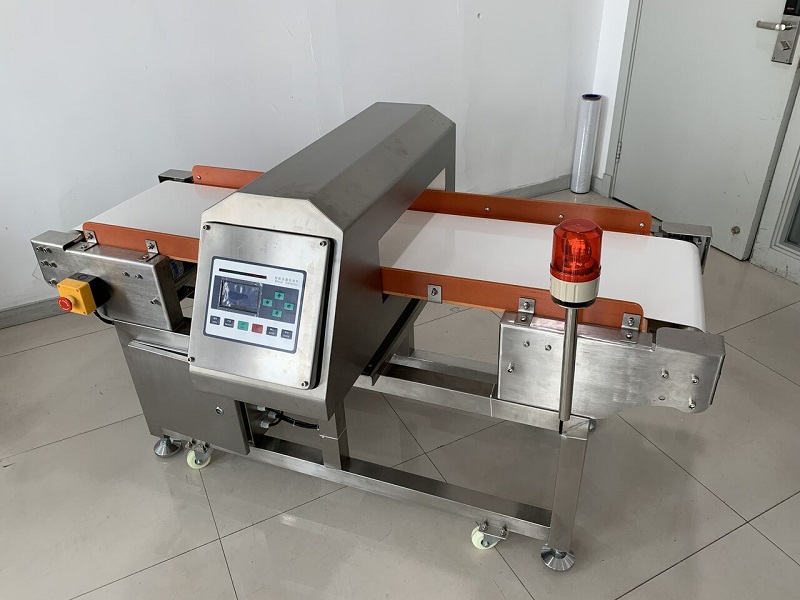

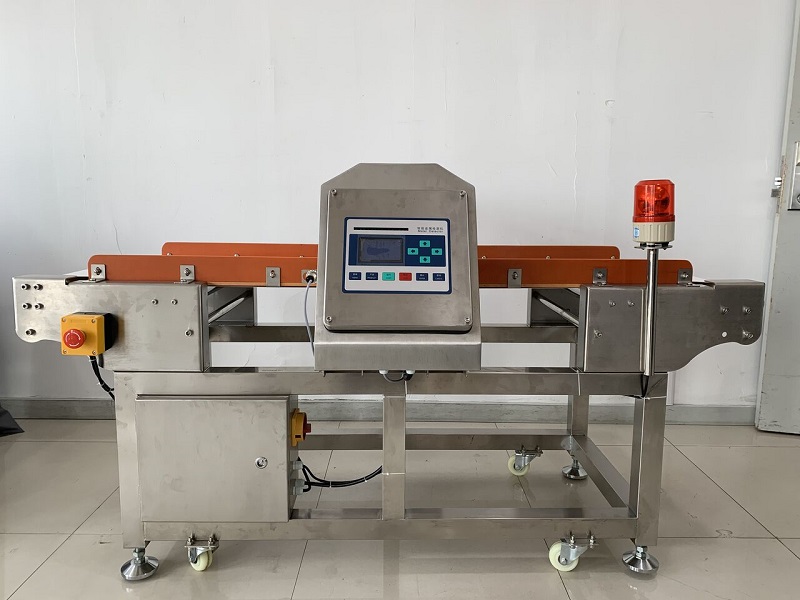

The most common of foreign material within processing is metal. Industrial Metal Detector Machine senses and removes the presence of ferrous, non-ferrous and stainless metals in the process flow — in-line, in free-fall applications, and in conjunction with conveyors.Food Metal Detection Equipment is suitable for metal detection in food, plastics, recycling, manufacturing and other processing industries.This system is usually available as stock, tagged with an attractive price.

Product Parameter
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm

Product Characteristics
1. Digital signal processing, multiple frequencies can be set, automatic frequency conversion, automatic learning, and memory function.
2. Can detect various metal materials such as iron, stainless steel, copper, aluminum and lead.
3. Use phase adjustment technology to effectively suppress product effects.
4. High-speed digital signal processing devices and intelligent algorithms greatly improve machine sensitivity and stability.
5. Made of special sealing design, the waterproof and dustproof grade reaches IP66.
6. Conveying speed 10~40 meters/minute (optional).
7. Alarm mode: buzzer/alarm light/can also be customized according to needs.
8. Detection method: shutdown/automatic exclusion/can be customized according to needs.
9. Machine size can be customized as required.

Specific Application

Customer Visit

Exhibition

Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.

After Sale Service
1.Product quality commitment
(1).There are quality records and testing data for the manufacture and testing of products.
(2).For the inspection of product performance,we sincerely invite users to inspect the whole process and performance of the product in person.After the product is confirmed to be qualified,it will be packaged and shipped.
2.the product price commitment
Under the same competitive conditions, our company will sincerely provide you with a preferential price on the basis of not reducing the technical performance of the product or changing the product components.
3. Delivery time commitment
Product delivery time: as far as possible according to user requirements,if there are special requirements, it needs to be completed in advance,and strive to meet user needs.
