Product Details
Product Introduction

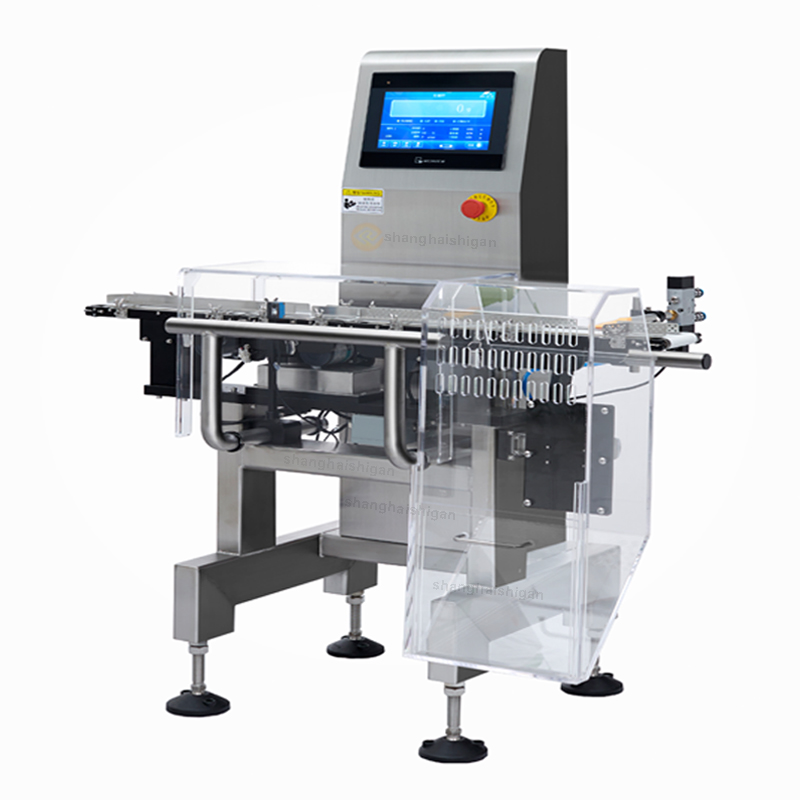

The High Production Efficiency Small Box Check Weigher is equipped with a pacing conveyor to correctly space boxes for accurate weighing. It automatically removes products that are out of tolerance. It impresses with its hygienic, robust and modular design, high precision and intuitive machine operation.Check Weigher With Rejection System is the perfect solution to increase production efficiency, reduce losses and control overfilling and underfilling. Checkweighers are available for both unpackaged and packaged products.
Technical Parameters
Type SG-150
Weighing Range 3-500g
Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 150 pcs/min
Belt Width 150mm
Machine Weight 80kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!

Main Features
Automatic selection - automatic selection method, convenient and fast;
Adjustable speed - high-precision detection, adjustable conveying speed;
Parameter settings - upper and lower limit weight parameters can be set arbitrarily;
Frequency conversion speed regulation - the conveying system adopts frequency conversion speed regulation mode to facilitate speed regulation;
Data storage - powerful data statistics function, recording daily detection data;
Data recall - with set data group memory and recall functions, easy to operate;
Data recording - OK number, underweight number, overweight number are accumulated respectively;
Fault diagnosis - self-fault diagnosis and prompt function to facilitate maintenance;
Multiple groups of storage - can store 100 groups of setting parameters;
Processing method - alarm/stop for unqualified products, optional rejection equipment;
Data viewing - historical record query function, which can be exported to a USB flash drive for direct viewing.

Application
Food
The automatic dynamic checkweigher can solve the problem of insufficient/overweight net weight detection of packaged food, full box/full bag of packaged food//missing of the entire package
Pharmaceutical
High-precision checkweighing scales can solve the pharmaceutical industry's problems in detecting whether tablets have too few or too many tablets; whether powder bags are missing or have too many bags; whether the weight of liquid drugs meets standard requirements; and whether drug accessories are missing (such as instructions and desiccants). wait).
Cosmetic Industry
Checkweighers solve quality control problems in automatic weighing and packaging production line inspections. Detect whether the mask is missing parts or bags, whether the cosmetics meet production requirements, whether the product is complete, etc.
Daily
Checkweigher is used to detect the missing quantity of single items in bags, bags, boxes, bottles and other products, such as missing bottles in the whole box, missing cans in the whole box, missing parts in the whole box, missing packages in the whole bag, missing packages in the whole strip, etc.
Hardware
The online checkweigher can detect various metal stamping parts, die-cast parts, machined parts, precision parts, spare parts and other product quality inspections, and online weigh and classify building materials products.


Our Customers

Our Exhibitions

Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.


After Sale Service
About the price
The price is based on the customer service quotation as the real price!
About the certificate
Each product will be equipped with a certificate of conformity before shipment, please rest assured to buy!
About delivery
The delivery cycle is within 10-15 days after the order is placed. If there is stock, it will be sent out in a short time. The customer needs to customize it. The specific delivery time will be notified to you by the customer service track!
About maintenance
If the customer's product fails, we will provide you with a specific solution.
