Product Details
Product Summarize
High-Efficiency Multi Lane Weight Checker can detect the weight of multiple columns at the same time, greatly improving the weighing speed and avoiding empty packages, underweight and overweight.Small Stick Product Line Multi-Lane Check Weigher are capable of checking the weight and fill level of up to 700 packaged products per minute on up to 10 lanes, allowing manufacturers to increase production speeds.Welcome to consult for quotation information !
Product Parameter
Mulit Lane Cherk Weigher
Model:SG-6X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:Maximum 70 pieces/min (one channel)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Windshield:Thick acrylic (to avoid airflow interference)
Working Environment:Temperature: 0℃～40℃, Humidity: 30%～95%
Product Characteristics
1. It is suitable for multi-row simultaneous automatic weight detection of small packaging products such as food, medicine, and daily necessities
2. Greatly improved the detection speed per unit time
3. Effectively prevent empty bags, underweight, overweight and other defective products
4. Count the passed products, and automatically remove unqualified products by the sorting device
5. It can be matched with multi-column packaging machines, automatic filling machines, metal detectors, etc.
6. Customized according to the requirements of the on-site production line, and can be configured with automatic barcode scanning and inkjet system
7. The number of detection columns can be customized according to customer needs (such as double columns, four columns, six columns, ten columns, etc.)
8. Each channel can eliminate unqualified products separately.
9. The number of consecutive unqualified products in each channel can be modified.
10. Statistical data of each channel: real-time result display, trend graph display, and histogram display.
Specific Application
Company Profile
Customer Visit
Exhibition

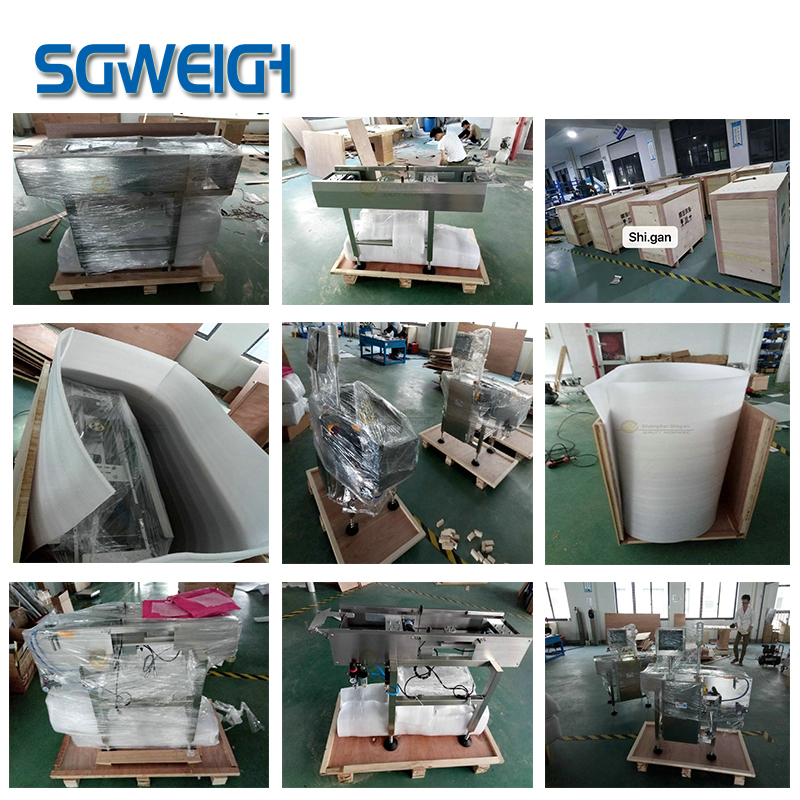

Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
After Sale Service
Based on the spirit of pursuing high-quality products and customer satisfaction, Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices, considerate service and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing, we sincerely invite users to personally check the whole process and performance of the product, and then pack and ship the product after it is confirmed to be qualified.
2. Product price commitment:
Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
Product delivery time: Try to meet user requirements. If there are special requirements, it needs to be completed in advance, and strive to meet user needs.
